HOME > Product: Parts > Auxiliary Tool for fixing Supporter

Coupling screw for Supporter

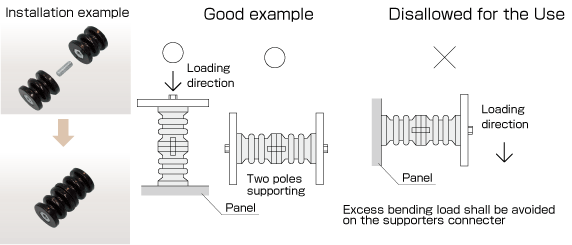

Application

It can be used for coupling the supporters, but not available for SS and DD Type Supporters.

Material

Chromate plating steel
Note: Cr(lll) mate finishing is used for the nuts and bolts in view of the environmental deterioration.

Part Number	Internal thread×Length	Suitable Supporter	Package quantity
MN-4N	M4×11	S-20-4	500
MN-5N	M5×11	S-20-5	500
MN-6SN	M6×11	S-20-6 / S-24	500
MN-6LN	M6×14	S-25	500
MN-8SN	M8×18	T-30 / T-35	500
MN-8LN	M8×23	D-40 / D-45 / D-50	500

▲PAGE TOP

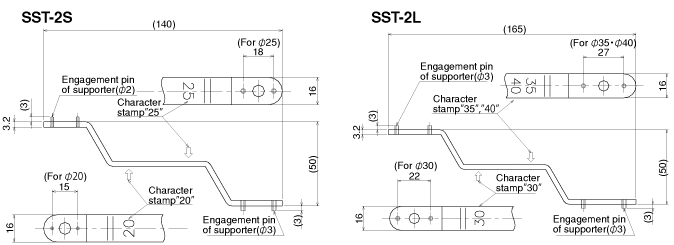

Auxiliary Tool for fixing Supporter SST-2S/SST-2L/SST-2P

Auxiliary Tool for fixing Supporter SST-2S/SST-2L/SST-2P
Example of installation

Note)
① SC type supporter has φ20 in dia,but it cannot be used because of no pin hole.
② This auxiliary tool aims at the prevention from idling in fitting the supporter.
③ Please be careful that fastening by rotating this auxiliary tool may occur
a possibility of breakage of both auxiliary tool pin and pin hole of the supporter.

Application

It can be used as the auxiliary tool to prevent slippage at the time of fixing the insulating supporters manufactured by Shinohara Electric Co.,Ltd.

Features

1) By inserting the pin of the tool to the pin hole at the upper part of the supporter the supporter can be fixed firmly without slippage and the efficiency of fitting work will go up.
2) Each diameter of suitable supporters is engraved at the body of the tool. In addition,the shape is fitting comfortably in one’s hand and then the usability has been improved.

Material

Main body : To be made of iron, Chrome-nickel plating
Pin : Stainless steel

Tool part number	SST-2S		SST-2L
Diameter of supporter	φ20	φ25	φ30	φ35,40, 45,50
Part number of Suitable supporter	S-15-※ S-20- S-24 TM-35	S-25 S-25-※ SM-30	T-30	T-35 T-35-※ D-40 D-45 D-50 D-50-※
Part number of Suitable supporter	SB-15 SB-20 SB-20- ※ SB-24	SB-25 SB-25-※	TB-30 TB-30-※	TB-35 TB-35-※ DB-40 DB-45 DB-50 DB-50-※

▲PAGE TOP

Auxiliary Tool for fixing Supporter SST-1

サポーター締付補助工具　SST-1　

Example of installation
サポーター締付補助工具SST-1使用例

Application

It can be used for fixing the insulating supporters supplied by Shinohara Electric.

Features

1) By inserting the pin of the tool to the pin hole at the upper part of the supporter and fixing the supporter, the supporter can be fixed firmly without rotation and the workability can be improved.
2) As 4 pitch size of pins are supplied to the tool, the tool can be available for all of the supporters supplied by Shinohara Electric.

Material

Trivalent Chromate plating steel and the resin coating provided for the grip portio

	A(Φ20)	B(Φ25)	C(Φ30)	D(Φ35,40)
Suitable Supporter	S-15- S-20- S-24 TM-35	S-25 S-25- SM-30	T-30	T-35 T-35- D-40 D-45 D-50 D-50-
Suitable Supporter	SB-15- SB-20 SB-20- SB-24	SB-25 SB-25-	TB-30 TB-30-	TB-35 TB-35- DB-40 DB-45 DB-50 DB-50-
